electron beam welding diagram,Electron beam welding is a liquid state welding process used to weld two or more metals together. As the name suggests electron beam welding is a process of welding in which a high-velocity electron beam is focused on the workpiece to generate heat, the heat produced melts the metal . Tingnan ang higit paThe working principle of electron beam welding is an energy conversion principle. The high voltage electrical energy is first converted to the kinetic energy of electrons through an electron gun. Then this kinetic . Tingnan ang higit paPart and construction are much similar to electron beam machining which is a non-traditional machining process. The electron beam welding machine has two parts. The upper part is called an electron beam . Tingnan ang higit paThe following disadvantagesinclude: 1. Initial cost:There are several expensive parts used in an electron beam welding machine such as an electron gun, magnetic . Tingnan ang higit paThe following advantagesare: 1. Flexibility:It is a flexible welding process that can be used for welding both similar and dissimilar metals. 1. Low running cost:The . Tingnan ang higit paElectron Beam Welding is a fusion welding process. It uses the kinetic energy of highly accelerated electrons emitted by the cathode tube or electron gun. When the highly accelerated electrons are bombarded .
Electron-beam welding (EBW) is a fusion welding process in which a beam of high-velocity electrons is applied to two materials to be joined. The workpieces melt and flow together as the kinetic energy of the electrons is transformed into heat upon impact. EBW is often performed under vacuum conditions to prevent dissipation of the electron beam.Learn about the definition, working principle, construction, advantages, and applications of electron beam welding (EBW), a high-precision welding technique that uses a focused .
What is EBM? EBM or Electron beam welding is a welding process that uses the heat produced by a beam of high-energy .
Electron beam welding (EBW) is a welding process in which a beam of high velocity electrons is applied to the materials being joined or fused. When these .
Contact Us. Electron beam (EB) welding is a fusion welding process whereby electrons are generated by an electron gun and accelerated to high speeds using electrical fields. This high speed stream of electrons .
Electron beam (light beam) welding is a welding method based on a principle of electrons emitted in a vacuum tube or Braun tube. Welding is essentially performed in a vacuum ( high-vacuum welding ), and is . Electron beam welding (EBW) uses a high-velocity beam of electrons to melt and fuse metals together. The electron beam can be focused to create a small weld area, which makes it ideal for welding .
In this article, we shall learn about electron beam welding its diagram, working, applications, advantages, and disadvantages. We have also provided a PDF for the same. Introduction: This Welding Process . Dr. Dmitri Kopeliovich Electron Beam Welding is a welding process utilizing a heat generated by a beam of high energy electrons. The electrons strike the work piece and their kinetic energy converts into thermal energy heating the metal so that the edges of work piece are fused and joined together forming a weld after Solidification. The process .
The beam spot diameter of a typical electron beam welding machine is in the range of 0.1-0.8 mm, and the energy density of the electron beam at the focus is in the order of 10 4 -10 7 W/mm 2 .electron beam welding diagram electron beam welding machineToday we will learn about electron beam welding, principle, working, equipment’s, application, advantages and disadvantages with its diagram. Electron beam welding is a liquid state welding process. Liquid state .This article introduces the operating principles and modes of operation for high-vacuum (EBW-HV), Medium-vacuum (EBW-MV), and nonvacuum (EBW-NV) electron beam welding. Equipment, process sequence, part preparation, process control, and weld geometry are described for electron beam welding. Advantages are described in terms .Electron-beam welding (EBW) is a high-energy density fusion process that is accomplished by bombarding the joint to be welded with an intense (strongly focused) beam of electrons that have been accelerated up to velocities 0.3 to 0.7 times the speed of light at 25 to 200 kV, respectively. This article discusses the principles of operation, as .

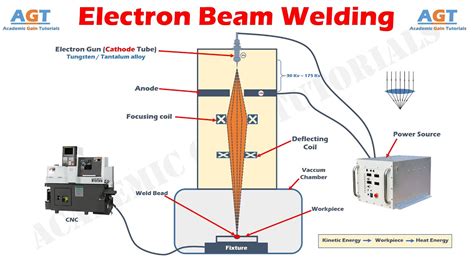

electron beam welding machineProcess, Diagram, Advantages & Applications. In the electron beam welding process, an electron is made to travel in vacuum at high speed by exciting it. This electron strikes the surface of the metal to be welded. The impact gives rise to heat energy which melts the metal and thus welding is obtained. Fig. 1: Electron Beam Welding.An electron beam welding machine consists of an electron gun, which is a device for producing a focused beam of high-speed electrons with velocities of between 0.3 and 0.7 times the speed of light.. The electron gun is normally mounted on, or in, a high vacuum chamber that contains tooling used for holding and moving a workpiece. The electron . Electron Beam Welding. Electron beam welding is a method with which people can take advantage of the heat generated by the concentrated high-speed electron beam when it bombards the workpiece to weld materials. It is a fusion welding process with high-density energy. Under action of high-voltage electrostatic field, the filament .The structure of an electron beam welder is shown in the diagram below. The pressure in the vacuum chamber is kept low to avoid energy loss when electrons collide with air molecules. A typical working pressure would be 1E-4 torr (0.00013 mBar) with the electron gun at a higher pressure of around 1E-6 torr (0.000001333 mBar). .Download scientific diagram | Electron-beam welding from publication: Advanced Manufacturing Welding processes for joining dissimilar metals and plastics | Techniques for joining dissimilar .Miikka Karhu. Veli Kujanpää. Electron beam (EB) welding is a keyhole welding process in which the kinetic energy of focused electrons is converted into the heat required for welding. When a full .
Electron beam welding is a process that utilises the heat from a high-velocity electron beam to form a weld. An electron gun generates the beam through the use of magnetic fields. The kinetic . Abstract and Figures. Electron Beam Welding is an unconventional manufacturing technique widely used in the Aerospace and Defense industries mainly due to the Narrow Fusion Zone (FZ) generated as .
Electron-beam welding can only be performed in a vacuum environment. In this environment there can be no gas that is present, as this can cause the beam to scatter or become distorted. The vacuum environment also allows for high voltages to be used during the welding process. The higher the voltage, the greater the amount of .
After reading this article you will learn about the setup and operation of Electron Beam Welding (EBW) with the help of a diagram. Once the workpiece is placed in position and the gun column and the work chamber are brought to the desired vacuum level (pressure less than 10-4 torr) the system is ready for operation. The emission of electrons starts .During the experiments, three different power stages of the electron beam were used-2100 W, 1500 W, and 900 W. The size and the shape of the formed weld seam were directly correlated to the input .
electron beam welding diagramElectron beam welding processes are usually carried out in a vacuum, yet there are also nonvacuum welding machines available. Modern electron beam welding machines are controlled by PLCs equipped with working tables or numerically controlled welding positioners enabling the automation of welding processes and provided with various . Electron beam welding process a) with preheating or post-weld heat treatment, b) . Schematic diagram showing the β-grain structures generated by a single beam contour pass in the 1 mm wall produced by the EBSM process [100]. However, it is noteworthy that application of a solid filler metal becomes not only a simpler alternative .
